- LED multifunction meter with RS485 communication, Harmonics up to 31st level, 40 to 270V DC & 85 to 270V AC
- Display Type : 7 Segment LED
- Display Configuration : 3 Rows of 4 Digits
- Electrical Connection : 3Ø -3W, 3Ø - 4W, 2Ø - 3W, 1Ø - 2W
- Type of Output : Pulse Output
- Features : Phase Angle, %THD Up to 31st Level, Import / Export Energy, Instantaneous ( Current / Voltage ), (Max/Min) Demand Power, Run Hour, Auxiliary Interrupts
- Communication Protocol : RS485 and MODBUS RTU
- CT Primary : 1 / 5A to 10kA (Programmable for Any Value)
- CT Secondary :1 / 5A ( Programmable )
- PT Primary : 100V to 500kV (Programmable for Any Value)
- PT Secondary : 100V to 500V AC (L - L) (Programmable for Any Value)
- Rated Input Current : Nominal 5A AC (Min - 11mA Max - 6A)
- Supply Voltage : 85 to 240V AC (-15% to +12%) (45/65Hz) & 40V to 270V DC
- Size : 96 x 96mm
- Mounting Type : Panel Mount
- Model : SPSELECMFM376-C-CE

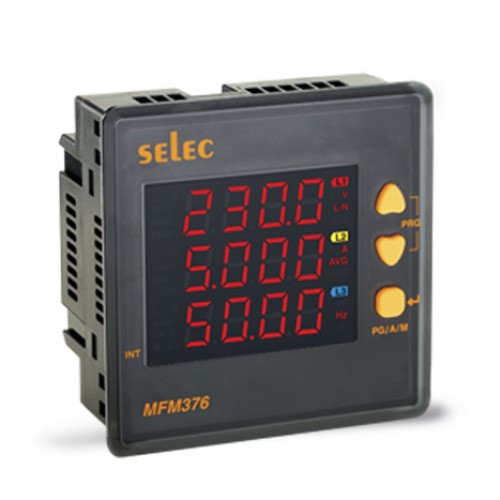

Selec Multifunction Meter (LED) MFM376-C-CE
- Product Code: SPSELECMFM376-C-CE
- Availability: 10
-
₹5,040.00
