- LCD multifunction meter, 100 to 240V AC
- Display Type : LCD with Backlight
- Display Configuration : 3 Rows of 4 Digits, 1 Row of 7 ½ Digits
- Electrical Connection : 3Ø - 3W, 3Ø - 4W, 2Ø - 3W, 1Ø - 2W
- Type of Output : Pulse Output
- Features : Password Protection, Energy (Active / Reactive / Apparent)
- Communication Protocol : RS485 and MODBUS RTU
- CT Primary : 1 / 5A to 10kA (Programmable for Any Value)
- CT Secondary :1 / 5A ( Programmable )
- PT Primary : 100V to 10kV (Programmable for Any Value)
- PT Secondary : 100V to 500V AC (L – L) (Programmable for Any Value)
- Rated Input Current : Nominal 5A AC (Min - 11mA Max - 6A)
- Supply Voltage : 100 to 240V AC (-15% to +12%) (45/65Hz)
- Size : 96 x 96mm
- Mounting Type : Panel Mount
- Model : SPSELECMFM383A

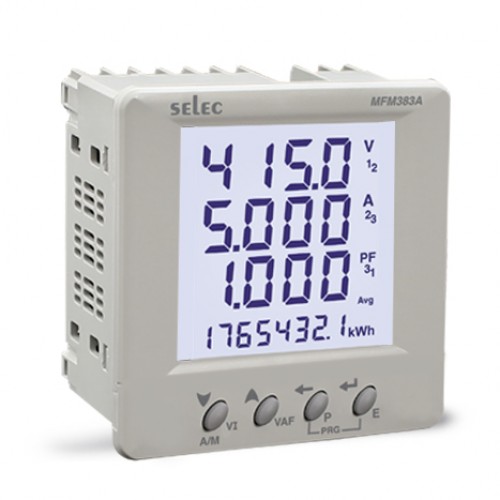

Selec Multifunction Meter (LCD) MFM383A
- Product Code: SPSELECMFM383A
- Availability: 10
-
₹4,760.00
