- Dual display, Single set point, Short depth temperature controller with Relay / SSR output, 90 to 270V AC /
DCDual display, Single set point, Short depth temperature controller with Relay / SSR output, 90 to 270V
AC / DC
- Display Type : 7 Segment LED Dual Display
- Display Configuration : 3 + 3 Digits
- Type of Input : Thermocouple (J,K,T,R,S) / RTD (PT100)
- Resolution ; 0.1/1° for TC/RTD (fixed 1° for R and S TC)
- Accuracy : For TC (J, K, T) inputs: 0.25% of F.S. ± 1 ° For R & S inputs: 0.5% of F.S. ±2 (20min of warm up time) For RTD inputs: 0.1% of F.S ±1
- Control Output : RELAY or SSR.
- Control Mode : Auto Tune / Selftune PID / ON-OFF
- Supply Voltage : 90 to 270V AC/DC
- Size : 48 x 48mm
- Mounting Type : Panel Mount
- Model : SPSELECTCTC533BX

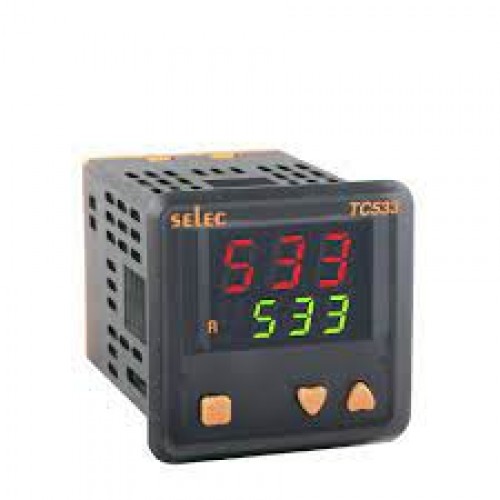

Temperature Controller TCTC533BX
- Product Code: SPSELECTCTC533BX
- Availability: 10
-
₹2,100.00
