- Dual display, Dual set point, Short depth temperature controller with Relay / SSR & Relay output, 90 to 270V
AC / DC
- Display Type : 7 Segment LED Dual Display
- Display Configuration : 4 + 4 Digits
- Types of Input : Thermocouple (J,K,T,R,S) / RTD (PT100)
- Resolution ; 0.1/1° for TC/RTD (fixed 1° for R and S TC)
- Accuracy : For TC (J, K, T) inputs: 0.25% of F.S. ± 1 °For R & S inputs: 0.5% of F.S. ±2(20min of warm up time) For RTD inputs: 0.1% of F.S ±1°
- Control Output : RELAY or SSR.
- Auxiliary Output : RELAY
- Control Mode : Auto Tune / Selftune PID / ON-OFF
- Feature : Heat Cool PID , Dwell Timer
- Supply Voltage : 90 to 270V AC / DC
- Size : 48 x 48mm
- Mounting Type : Panel Mount
- Model : SPSELECTCTC544B

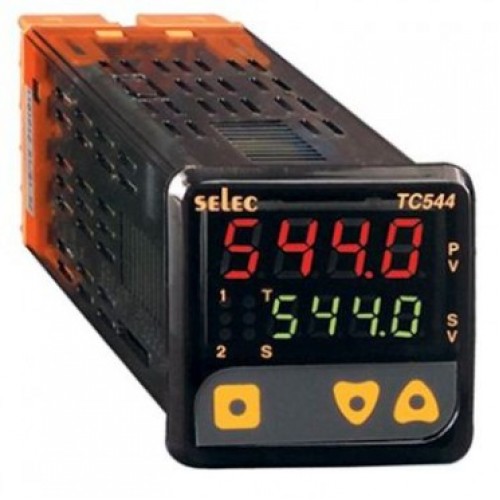

Temperature Controller TCTC544B
- Product Code: SPSELECTCTC544B
- Availability: 10
-
₹2,380.00
