- Panel Mount ELR, Leakage Current range : 30mA to 30A, 85 to 270 V AC/DC
- Measuring Parameter : Monitors True RMS Earth Leakage Current (upto 30A )
- Electrical Connection : 1Ø-2W, 3Ø-4W, 3Ø-3W
- Supply Voltage : 90- 270V AC/DC
- Trip Leakage current range : 30mA - 30A
- Display Current range : 15mA - 33A
- Time Ranges : 0 to 999 sec
- Response time : < 30ms (if trip current 5 x set value & Instantaneous trip is ON) < 50ms (if trip current = 1 x set value)
- CBCT DETECTION : Yes, when CBCT absent or short
- Accuracy : ± 5% setting of current ± 5% time setting for ±100ms
- Output Contact : 1 C / O (SPDT )
- Output Rating : NO / 5A@250V AC / 28V DC
- Size : 96X96mm
- Mounting Type : Panel mount
- Model : SPSELECPRELRA341-1

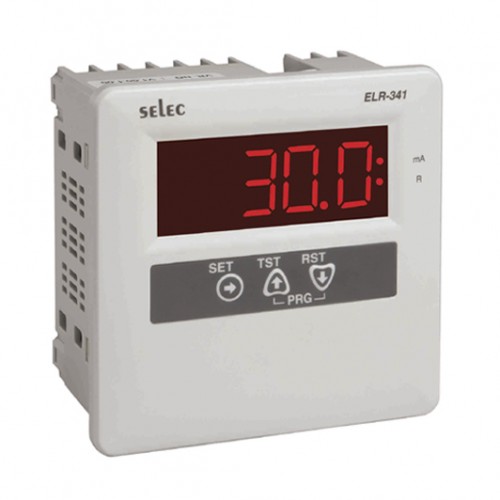

Selec Protection Relay PRELRA341-1
- Product Code: SPSELECPRELRA341-1
- Availability: 10
-
₹2,808.00
