- Analog motor protection relay, 2 C/O, 415V
- Measuring Parameter : Overload Current, Phase Asymmetry, Phase Failure, Phase Sequence & Under Current
- Electrical Connection : 3Ø-3W
- Display : 3 LED Indication
- Trip Setting : Phase Unbalance: 50% of Motor Current (Fixed), T(sec ) Setting: To Select 2sec, 4sec, 6sec, 8sec,10sec Trip Time Curve in Overload Trip Curve Graph, Under Current: 50% of Motor Current, X Imax: To Select Motor Current Rating
- Time Ranges : Single Phase Trip: 5sec, Phase Unbalance: 5sec, Phase Sequence: 5sec, Overload Trip: as Per Graph 1, Under Current Trip: 5sec
- CT Setting : 10A, 40A, 80A
- Accuracy : Trip: ±5% of Set Value, Time: ±5% of Setting ±100ms
- Output Contact : 2 C/O (DPDT)
- Output Rating : NC: 5A@240V AC, NO: 5A@240V AC
- Supply Voltage : 415V AC (±15%)
- Size : 52.5mm
- Mounting Type : DIN Rail Mount
- Model : SPSELECPRMPR-3M-2-415V

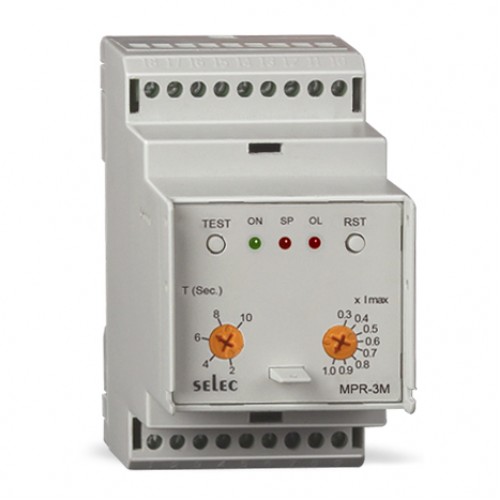

Selec Protection Relay PRMPR-3M-2-415V
- Product Code: SPSELECPRMPR-3M-2-415V
- Availability: 10
-
₹2,702.00
