- Analog earth leakage relay, Leakage current range : 30mA to 30A , 1 C/O, 230V AC
- Measuring Parameter : Monitors True RMS Earth Leakage Current (upto 30A)
- Electrical Connection : 1Ø-2W, 3Ø-4W, 3Ø-3W
- Trip Setting : 30mA - 30A
- Time Ranges : Trip Time Delay: 0 to 9 sec (NA when In=0.03A)
- Accuracy : Trip: ± 5% of Set Trip Current, Time: ± 5% of set Time + Response Time
- Output Contact : 1 C / O (SPDT )
- Output Rating : NO / 10A@277V AC / 28DC(1)
- Supply Voltage : 230V AC (±15%)
- Size : 35mm
- Mounting Type : DIN Rail Mount
- Model : SPSELECPRELRA2M2-1-230V-CE

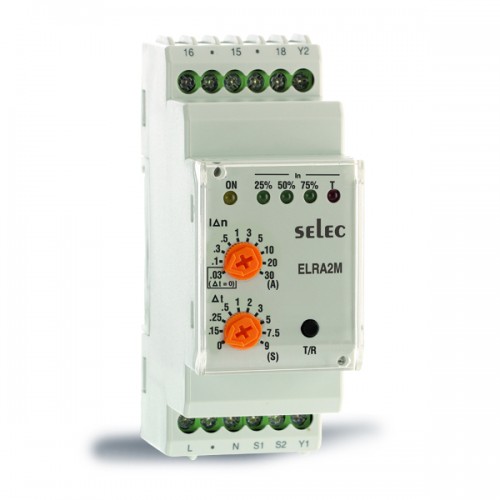

Selec Protection Relay PRELRA2M2-1-230V-CE
- Product Code: SPSELECPRELRA2M2-1-230V-CE
- Availability: 10
-
₹2,520.00
