- Digital earth leakage relay, Leakage Current range : 30mA to 30A, 2 x 1 C/O, 230V AC
- Measuring Parameter : Leakage Current Monitoring in 3Ø & 1Ø Systems
- Electrical Connection : 1Ø-2W, 3Ø-3W, 3Ø-4W
- Display : 3 Digits Liquid Crystal Display With Backlight.
- Trip Setting : 30mA - 30A
- Time Ranges : Power ON Delay: 0.5-99.9sec, Trip Time Delay: 0-99.9sec, Recovery Time Delay: 0-99.9sec
- Accuracy : Current: ± 5% of setting, Recovery Time, Trip Delay, Power ON Delay: ± 5% of Setting + 100
- Output Contact : 2 X 1 C / O (SPDT)
- Output Rating : NC:3A @ 250V AC, NO:5A @ 250V AC
- Supply Voltage : 230V AC
- Size : 35mm
- Mounting Type : DIN Rail Mount
- Model : SPSELECPR900ELR-2-230V

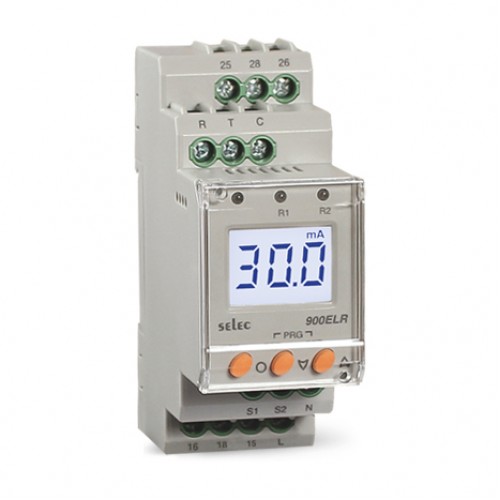

Selec Protection Relay PR900ELR-2-230V
- Product Code: SPSELECPR900ELR-2-230V
- Availability: 10
-
₹3,785.00
