- 1Ø & 3Ø, Over / Under current monitoring, Current asymmetry,1 C/O, 230V AC
- Measuring Parameter : Under Current, Over Current, Current Asymmetry Monitoring
- Electrical Connection : 1Ø-2W, 3Ø-3W, 3Ø-4W
- Display : 3 Digits Liquid Crystal Display with Backlight
- CT Setting : CT Primary: 1A / 5A – 999A, CT Secondary: 1A / 5A (selectable)
- Time Ranges : Power ON Delay: 0.5–99.9sec, Trip time delay: 0–99.9sec,
Recovery Time Delay: 0–99.9sec (In Auto Reset Mode), Response Time: <200ms - Accuracy : Current: ±1% of Setting ± 2 digits, Time Setting Accuracy: ±5% of Setting ±200ms
- Output Contact : 1 C / O (SPDT)
- Output Rating : NO: 5A@250V AC, NC: 3A@250V AC
- Supply Voltage : 230V AC (±15%)
- Size : 35mm
- Mounting Type : DIN Rail Mount
- Model : SPSELECPR900CPR-3-230V

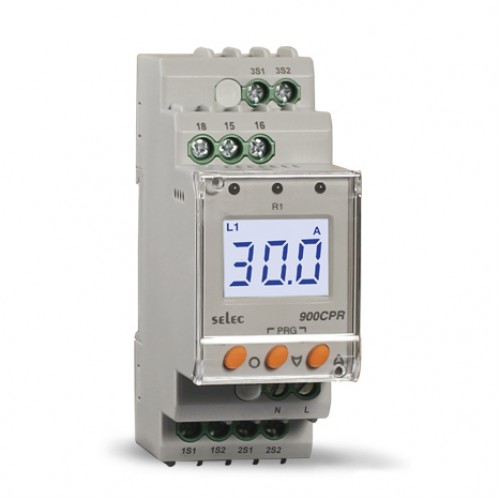

Selec Protection Relay PR900CPR-3-230V
- Product Code: SPSELECPR900CPR-3-230V
- Availability: 10
-
₹3,088.00
