- Digital ,1Ø-2W, 3Ø-4W, Under / Over voltage, Phase failure,Phase sequence, Phase asymmetry, Under / Over
frequency,2 C/O DPDT
- Measuring Parameter : Under Voltage, Over Voltage, Phase Asymmetry, Phase Failure, Phase Sequence
- Electrical Connection : 1Ø-2W, 3Ø-4W
- Display : 3 Digits LCD
- Time Ranges : Trip Time Delay : 0 to 300sec, Power ON Delay : 0.5 to 300sec,
Recovery Time Delay : 0 to 300sec, Response Time : <150ms - Accuracy : Trip Setting : ±1% ± 2 digits , Time Setting : ±5% of Setting ± 150ms
- Output Contact : 2 C/O (DPDT )
- Output Rating : NO,NC: 5A @ 250V AC / 28 V DC
- Operating Voltage : 127 to 288V AC (L-N)
- Size : 35mm
- Mounting Type : DIN Rail Mount
- Model : SPSELECPRVPRD2M

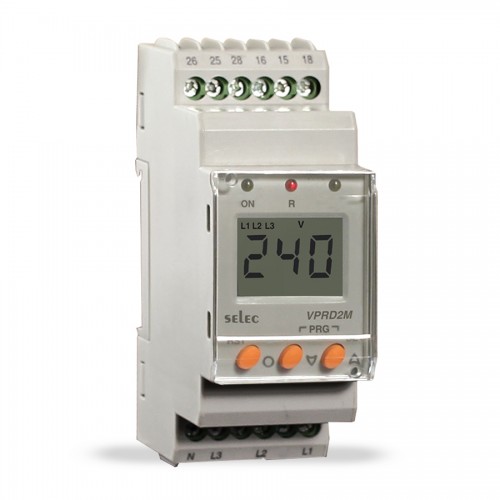

Selec Protection Relay PRVPRD2M
- Product Code: SPSELECPRVPRD2M
- Availability: 10
-
₹2,106.00
