- 3Ø-3W, 3Ø-4W, Under / Over voltage, Phase failure, Phase sequence, Phase asymmetry, Under / Over
frequency, Neutral loss, 2 x 1C/O, 85 to 270V AC / DC
- Measuring Parameter : Under Voltage, Over Voltage, Under Frequency, Over Frequency, Phase Asymmetry, Phase Failure, Neutral Loss, Phase Sequence
- Electrical Connection : 3Ø-3W, 3Ø-4W
- Display : 3 Digits Liquid Crystal Display With Backlight
- Trip setting : Under / Over Voltage: 85 to 500V AC L-L (for 3Ø-3W), 50 to 288V AC L-N (for 3Ø-4W), Under/Over Frequency: 45-65 Hz, Voltage Asymmetry: 5.0-30.0%
- Time Ranges : Trip Time Delay: 0-300sec, Power ON Delay: 0.5-300sec,
Recovery Time Delay: 0-300sec (In Auto Reset mode), Response Time: <120ms - Accuracy : Trip Voltage: ±1% ±2 digits, Frequency: ±0.5% ±1 digit, Time Setting Accuracy: ±5% of setting ±120ms
- Output Contact : 2 x 1C/O (SPDT)
- Output Rating : NC: NC: 3A@250V AC, NO: 5A@250V AC (Res)
- Operating Voltage : 50 to 288V AC (L-N), 85 to 500V AC (L-L)
- Size : 35mm
- Mounting Type : DIN Rail Mount
- Model : SPSELECPR900VPR-BL-U-CE

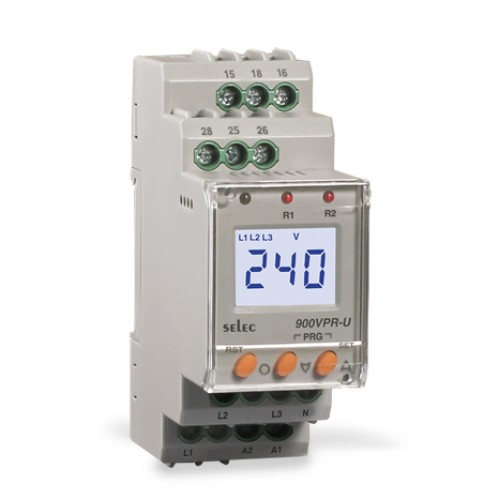

Selec Protection Relay PR900VPR-BL-U-CE
- Product Code: SPSELECPR900VPR-BL-U-CE
- Availability: 10
-
₹3,968.00
