3Ø-3W, 3Ø-4W, Under / Over voltage, Phase failure, Phase sequence, Phase asymmetry, Under / Over frequency, 2 x 1 C/O, Self powered
Measuring Parameter : Under Voltage, Over Voltage, Under Frequency, Over Frequency, Phase Asymmetry, Phase Failure, Phase Sequence
Electrical Connection : 3Ø-3W, 3Ø-4W
Display : 3 Digits Liquid Crystal Display Without Backlight
Time Ranges : Trip Time Delay: 0-99.9 sec, Power ON Delay: 2-99.9 sec,
Recovery Time Delay: 0-99.9 sec, Response Time: < 200ms
Accuracy : Trip Voltage: ±1% of Set Value
Output Contact : 2 x 1C/O (SPDT)
Output Rating : NC: NC: 3A@250V AC, NO: 5A@250V AC (Res)
Operating Voltage : 280 to 520V AC (L-L), 160 to 300V AC (L-N)
Size : 35mm
Mounting Type : DIN Rail Mount
Model : SPSELECPR900VPR-2-280/520V

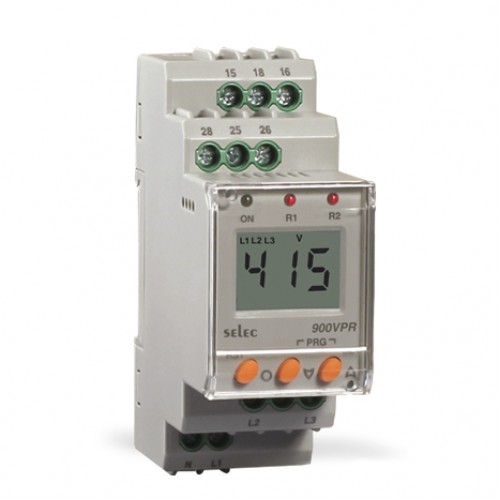

Selec Protection Relay PR900VPR-2-280/520V
