- Multi function timer, 0.1 sec to 3 hr, 1 C/O,20 to 240V AC & 12 to 240V DC
- Operating Modes : On Delay, Interval, Cyclic equal OFF first, Cyclic equal ON first, Pulse output (50msec), Delay on Break, Delay on Make/ Delay on Break, Interval after Break, Single shot, Retriggerable single shot, Latching relay, Delay on make with totalise, Interval with totalise
- Range : 0.1-1 sec/min/hr, 0.3-3 sec/min/hr, 1-10 sec/min, 3-30 sec/min
- Resolution : 0.1 sec
- Accuracy : Setting: ± 5% of F.S., Repeat: ± 0.5% (Full Scale), Pause Time Accuracy: ± 5% , ± 5ms
- Relay Contact : 1 C/O SPDT
- Contact Rating : 5A @ 250V AC or 24V DC
- Supply Voltage : 20 to 240V AC, 12 to 240V DC
- Size : 17.5mm
- Mounting Type : DIN Rail Mount
- Model : SPSELECDRT600XU-A-1-CU

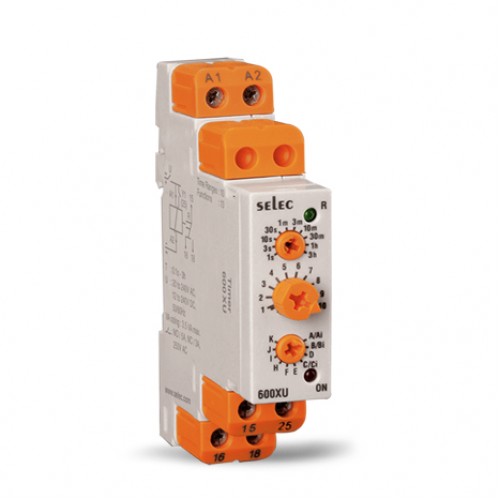

SELEC DIN RAIL TIMER DRT600XU-A-1-CU
- Product Code: SPSELECDRT600XU-A-1-CU
- Availability: 10
-
₹1,383.00
