Output Current Rating: 15.5A
Overload: 150% x 60 seconds.
Size: M3 - 90mm Wide x 202mm Deep x 239mm High. IP20.
Weight: 3kg.
Speed Control Range: 0-200 Hz (VVC+), 0-400 Hz (VxF).
Braking (DBr): Internal Brake Switch Fitted (Does not have to be used; available if required)
Braking resistor (not supplied): 51.8 Ohm Nominal; 44 Ohm Minimum – see linked products below.
Communications: RS485 (twin-wire); FC Protocol, Modbus RTU.
Programmable from a PC via Danfoss MCT 10 Software. (via RS485 port)
Input Current: 36.3A max
Input Voltage: 380-480V ±10% at 50-60Hz.
EMC Filters: To IEC/EN 61800-3 2nd Environment (Industrial); 1st Environment with restrictions – C2
Full part number (without Keypad): 132F0030

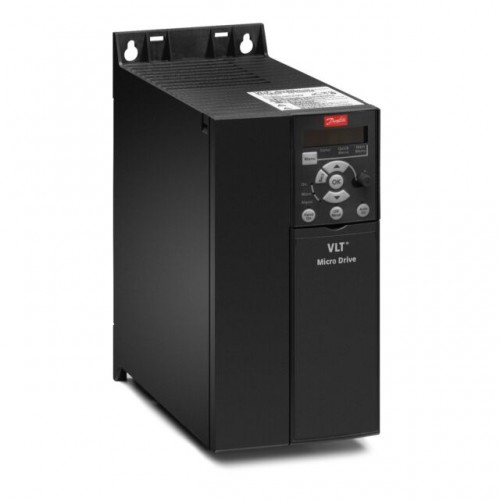

Danfoss VLT FC 51 7.5kW/10HP
