- 1Ø, Over / Under current monitoring, 1 C/O, 230V AC
- Measuring Parameter : Under Current, Over Current Protection for 1Ø System
- Electrical Connection : 1Ø-2W
- Display : 3 Digit Liquid Crystal Display
- CT Setting : CT Primary: 1A/5A – 999A, CT Secondary: 1A/5A (selectable)
- Time Ranges :Power ON Delay: 0.5 – 99.9s,Trip Time Delay: 0 – 99.9s
Recovery Time Delay: 0 – 99.9s, Response Time: < 200ms - Output Contact : 1 C/O (SPDT)
- Accuracy : Current: ±1% of setting ± 2 digit, Time Setting Accuracy: ±5% of setting ± 100ms
- Output Rating : NO: 5A, 250V AC, NC: 3A, 250V AC
- Supply Voltage : 230V AC ±15%
- Size : 35mm
- Mounting Type : DIN Rail Mount
- Model : SPSELECPR900CPR-1-230V

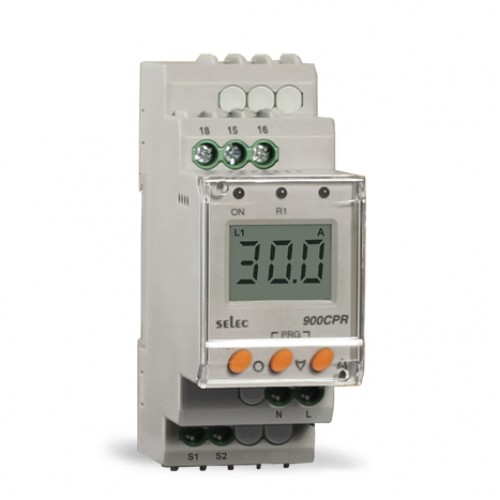

Selec Protection Relay PR900CPR-1-230V
- Product Code: SPSELECPR900CPR-1-230V
- Availability: 10
-
₹2,649.00
